PREVOST PPS - Aluminium Female Threaded Straight
Couldn't load pickup availability
Share

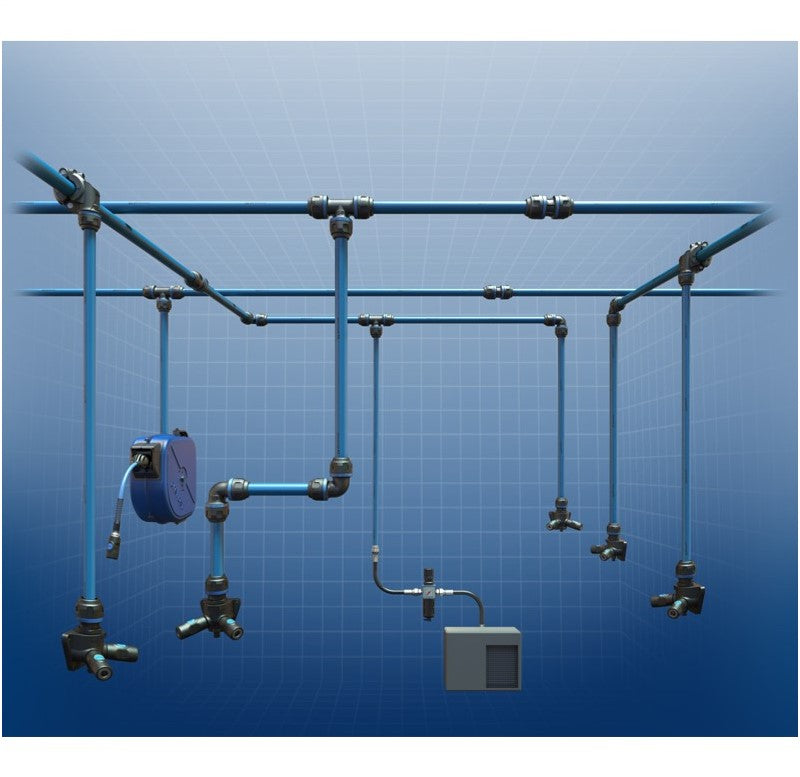

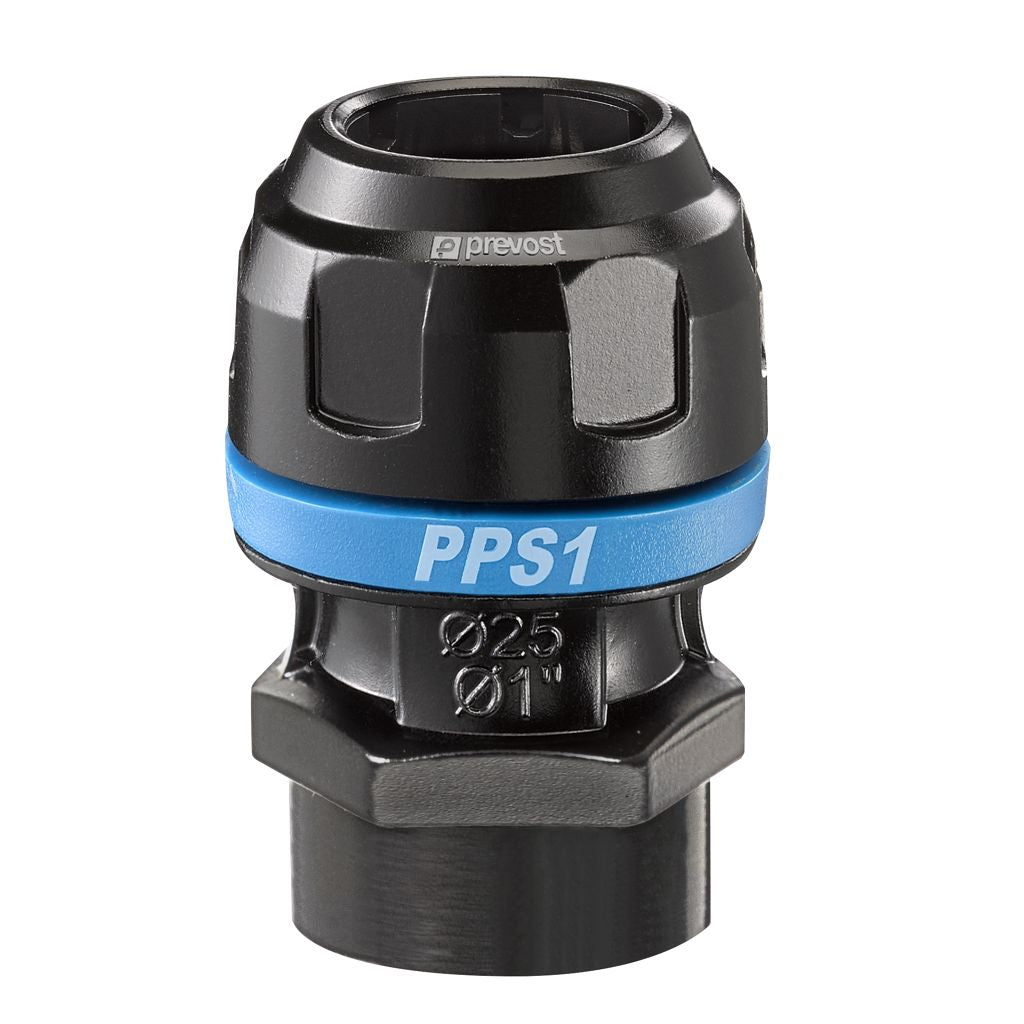

The Prevost aluminium tapered male threaded straight is part of a PPS system that is modular, scalable and ensures a flawless connection and zero leaks when used with Prevost PPS Aluminium Blue Pipe. The aluminium tapered female threaded straight is rigid and has a perfectly smooth internal surface, a low friction coefficient, and a large internal diameter to optimise flow rates. It has a gasket specifically designed for its application with two Teflon-coated lobes to optimise leak tightness. The tapered female threaded straight has an operating pressure of 0-16bar and a temperature range of -20°C to +80°C.
- Body and nut: 100% aluminium
- Push fitting modular system
- Compact and lightweight
- Marking and ISO colour
- UV and heat-resistant
- Very low pressure loss
- Cost-effective
- Rustproof
- BSPT Thread
| Fitting Size |
Dimension A |
Dimension B | Dimension C |
| 16mm - G 3/8" | 32mm | 53mm | 26mm |
| 16mm - G 1/2" | 32mm | 53mm | 26mm |
| 20 mm - G 1/2" |
38mm | 63mm | 32mm |
| 20mm - G 3/4" |
38mm | 63mm | 32mm |
| 25mm - G 1/2" | 46mm | 72mm | 38mm |
| 25mm - G 3/4" | 46mm | 72mm | 38mm |
| 25mm - G 1" |
46mm | 72mm | 38mm |
| 32mm - G 1" |
57mm | 83mm | 46mm |
| 32mm - G 1 1/4" | 57mm | 83mm | 46mm |
| 40mm - G 1 1/4" | 68mm | 98mm | 57mm |
| 40mm - G 1 1/2" | 68mm | 103mm | 57mm |
Click here to download the Prevost PPS Brochure.
